KF-PRX SERIES

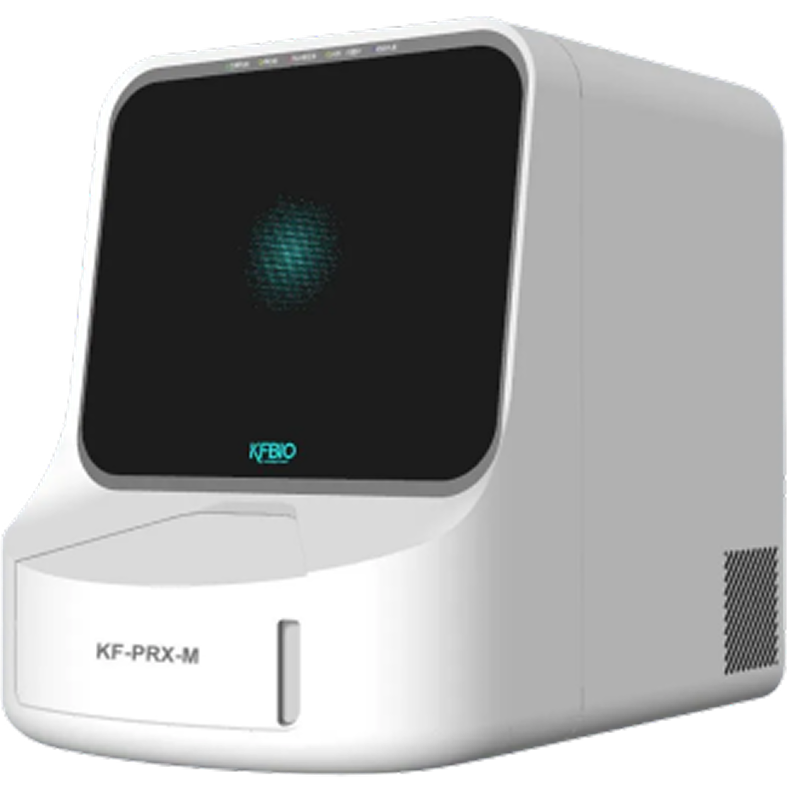

KF-PRX-M

Next Generation Digital Pathology Scanner

High-throughput digital pathology slide scanner delivering fast, precise, and efficient whole slide imaging. Supports brightfield and fluorescence scanning with continuous loading capability for clinic, education, and remote consultation applications.

*Only available in Singapore & Brunei

Request Demo
Download Brochure
480
Slides Capacity
15s
Per Slide at 20x
10
Fluorescence Channels

See KF-PRX-M in Action

Cutting-Edge Technology

Advanced features designed for precision, efficiency, and reliability in digital pathology.

Lightning Fast Speed

Rapid scanning at 15mm×15mm areas: 15 seconds per slide at 20x, 25 seconds at 40x. Supports 24/7 continuous loading for uninterrupted workflow.

Quiet & Stable Scanning

Magnetic suspension motor drive ensures smooth, quiet operation with exceptional 99.85% successful scan rate for maximum reliability.

High Fidelity Imaging

Exceptional resolution of 0.36 µm/pixel at 20x and 0.18 µm/pixel at 40x for brightfield, delivering superior whole slide imaging quality.

High Precision

Advanced 50nm positioning accuracy with support for 80x magnification, ensuring precise focus and exceptional image detail across all samples.

High Compatibility

Supports both brightfield and fluorescence (up to 10 channels) with multiple output formats including KFB, TIF, DICOM, SVS, KFBF, QPTIFF.

Professional Services

Rapid product customization with responsive technical support and comprehensive after-sales services for seamless laboratory integration.

Full Specifications

Complete technical details and system requirements.

Objective Type 20× 0.8NA & 40× 0.95NA (High-end objectives)
Optical Magnification 20x & 40x
Scanning Speed 15 sec/slide at 20x, 25 sec/slide at 40x (15mm×15mm)
Throughput Up to 90 slides/hour (20x: 2,160 slides/day)
Scan Core Numbers 1
Resolution 0.36 μm/pixel at 20x, 0.18 μm/pixel at 40x
Scan Method Line Scanning (supports area camera & line camera)
Output Format KFB, TIF, DICOM, SVS
Optical Magnification 40x & 80x
Scanning Speed ≤6 min/slide (10mm×10mm, 3 filters), ≤12 min/slide (6 filters)
Scan Core Numbers 1
Resolution 0.33 μm/pixel at 20x, 0.17 μm/pixel at 40x
Scan Method Area Scanning
Output Format KFBF, QPTIFF
Fluorescence Channels 3, 4, 6, 8, or 10 channels (configurable)
Filter Configuration 9-position electric filter wheel (DAPI, Orange, Green; expandable to 10 channels)
Camera Active cooling sCMOS monochrome (ultra-high SNR and resolution)
Wavelength Range 180–1100 nm (UV to NIR)
Detection Efficiency 95% QE at 960 nm (brighter, clearer images)
Field of View (FOV) 1mm
Z-Stack Scanning ≤10 layers (clear scanning of clustered cells)
Multi-Layer Fusion Supported
Objective Lens Evident X-Line UPLXAPO 20X, 40X (Optional: 4X, 10X, 50X, 60X)
Objective Lens Sockets 5 (flexible switching)
Positioning Accuracy 50nm
Focusing Method Auto/Manual Focus
Slide Capacity 150–480 slides
Loading Capacity Fully automatic one-click scanning, 480 slides at once
Slide Holder Type Rack (20 or 30 slides per rack, maximum 16 racks)
Continuous Loading 24/7 infinite loading without interrupting scanning process
Staining Rack Compatibility Multiple model support (Sakura, Hawell, etc.) for automatic loading-scanning-archiving
Capacity with Handle Maximum 240 slides (8 racks × 30 slides)
Label Identification Supported
Scanner Dimensions (W×L×H) 740 × 530 × 730 mm
Power Supply 100–240V AC, 50/60Hz
PC Configuration Dell OptiPlex (CPU: I5-14500, Memory: 64G, Storage: 1T SSD NVMe)
Operating System Windows 10 Professional 64-bit

Application Environments

Clinical Laboratories

Ultra-high throughput digital pathology solution for clinical laboratories processing up to 2,160 slides daily with exceptional reliability and continuous loading capability.

Education & Training

Ideal for teaching institutions and training programs requiring high-quality digital slides for pathology education, with support for both brightfield and fluorescence imaging.

Remote Consultation

Enables telepathology workflows with rapid digitization and multiple output format support for seamless remote diagnosis and expert consultation.

Research Facilities

Comprehensive imaging solution supporting brightfield, fluorescence (up to 10 channels), and Z-stack scanning for advanced pathology and biomedical research applications.

High-Volume Facilities

Perfect for ultra-high-throughput environments from small laboratories to research centers, meeting diverse needs with 480-slide capacity and continuous loading.

Flexible Research

Supports brightfield/fluorescence dual mode for both conventional pathology and cutting-edge research, with flexible objective switching adapting to complex needs.
